SI2302A - 20V N-ChanneI MOSFET

Name: SI2302A
SKU: SI2302A-1587653

📥 Download Datasheet

SI2302A Datasheet Preview — Preview of SI2302A PDF

Datasheet Details

Part number	SI2302A
Manufacturer	UMW
File Size	156.55 KB
Description	20V N-ChanneI MOSFET
Datasheet	SI2302A-UMW.pdf

SI2302A Product details

Description

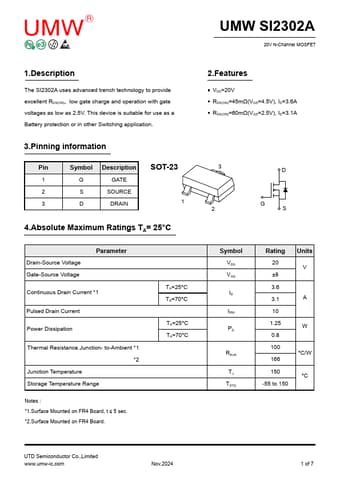

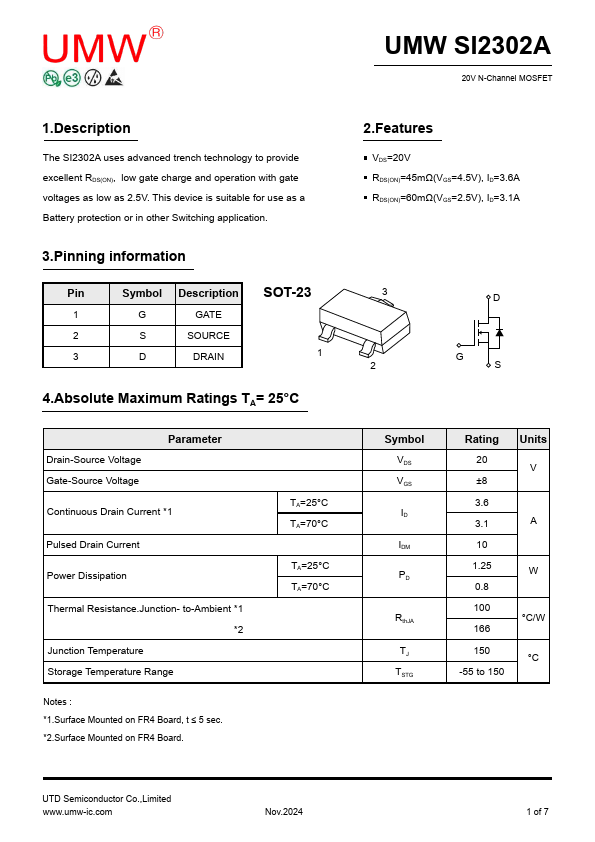

The SI2302A uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as 2.5V. 1 Pulsed Drain Current Power Dissipation Thermal

Features

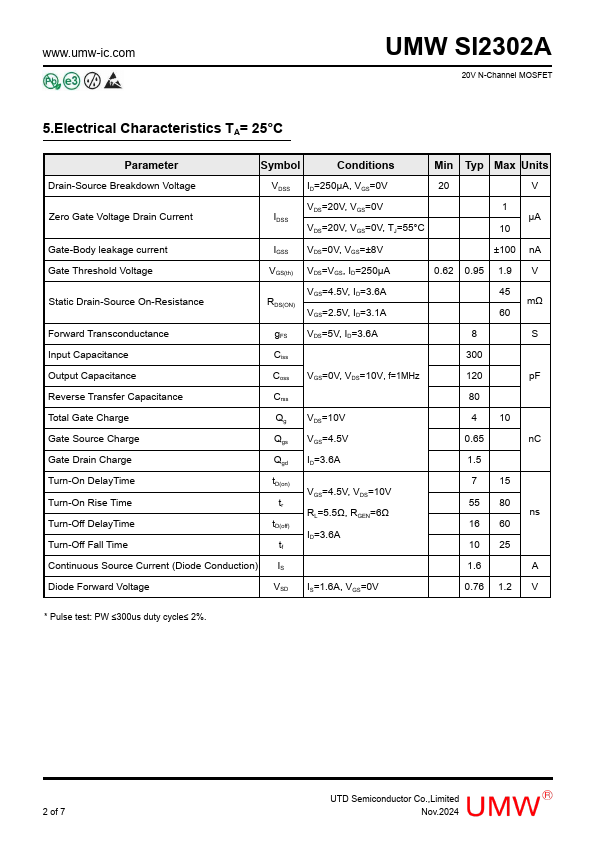

VDS=20V RDS(ON)=45mΩ(VGS=4.5V), ID=3.6A RDS(ON)=60mΩ(VGS=2.5V), ID=3.1A 3 D G 2 S Symbol VDS VGS ID IDM PD RthJA TJ TSTG Rating 20 ±8 3.6 3.1 10 1.25 0.8 100 166 150 -55 to 150 Units V A W °C/W °C UTD Semiconductor Co. ,Limited www. umw-ic. com Nov.2024 1 of 7 www. umw-ic. com UMW SI2302A 20V N-ChanneI MOSFET 5.Electrical Characteristics TA= 25°C Parameter Symbol Conditions Min Typ Max Units Drain-Source Breakdown Voltage VDSS ID=250µA, VGS=0V 20 V Zero Gate Voltage Drain Curre.
