MADS-002545-1307M, SURMOUNTTM Medium Barrier Silicon Schottky Diodes

www.DataSheet4U.com SURMOUNTTM Medium Barrier Silicon Schottky Diodes: Cross-Over Quad Series Ultra-small 600x600um Surface-Mount Chip

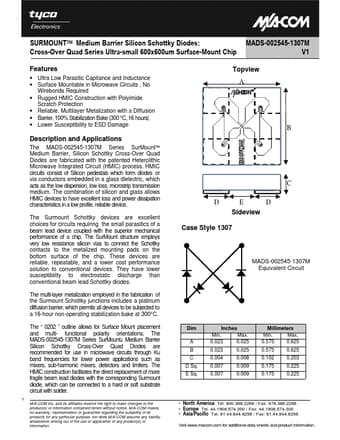

MADS-002545-1307M Datasheet Preview Page 2

Features

* Ultra Low Parasitic Capitance and Inductance
* Surface Mountable in Microwave Circuits , No Wirebonds Required
* Rugged HMIC Construction with Polyimide Scratch Protection
* Reliable, Multilayer Metalization with a Diffusion
* Barrier, 100% Stabilization Bak

Applications

* The MADS-002545-1307M Series SurMount™ Medium Barrier, Silicon Schottky Cross-Over Quad Diodes are fabricated with the patented Heterolithic Microwave Integrated Circuit (HMIC) process. HMIC circuits consist of Silicon pedestals which form diodes or via conductors embedded in a glass dielectric, whi
