MADCSM0001 - Dual-Band/Triple-Mode Downconverter

Product Overview

Tyco Electronics

📥 Download Datasheet

MADCSM0001 Dual-Band/Triple-Mode Downconverter by Tyco Electronics - Datasheet Preview — Datasheet preview – MADCSM0001

Datasheet Details

Part number	MADCSM0001
Manufacturer	Tyco Electronics
File Size	293.74 KB
Description	Dual-Band/Triple-Mode Downconverter
Datasheet	MADCSM0001 Datasheet

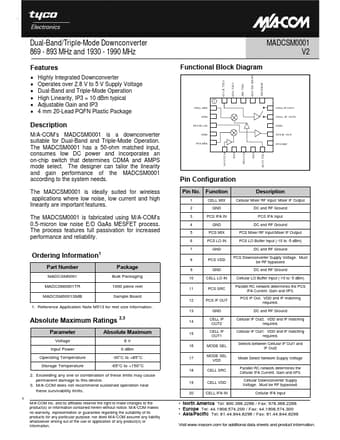

Additional preview pages of the MADCSM0001 datasheet.

Product details

Description

M/A-COM’s MADCSM0001 is a downconverter suitable for Dual-Band and Triple-Mode Operation.

Features

Highly Integrated Downconverter Operates over 2.8 V to 5 V Supply Voltage Dual-Band and Triple-Mode Operation High Linearity, IP3 = 10 dBm typical Adjustable Gain and IP3 4 mm 20-Lead PQFN Plastic Package MADCSM0001 V2 Functional Block Diagram MODE SEL VDD CELL IFA IN MODE SEL CELL VDD CELL SRC 1 CELL MIX GND CELL IF OUT1 CELL IF OUT2 GND PCS IF OUT PCS SRC PCS LO IN GND PCS VDD GND CELL LO IN.
