MADCSM0011 - Dual Mode Cellular Downconverter

Description

M/A-COM’s MADCSM0011 integrated downconverter combines a downconverting mixer, an IF amplifier, a LO buffer amplifier and an output mode switch.

The MADCSM0011 is packaged in a low cost 3mm 12-Lead PQFN package with an exposed pad for improved high frequency grounding.

Features

  • Dual Mode Downconverter with LO Amplifier 3mm 12-Lead PQFN Package Operates over 2.7 V to 5 V Supply Voltage High Gain: 12.5 dB Typical High Input Intercept Point: +8 dBm Typical Low Current Draw: 12 mA Typical Adjustable IP3 Level Low LO Drive Level: -10 dBm MADCSM0011 V2 Functional Block Diagram ` ` `.

📥 Download Datasheet

📁 Similar Datasheet

  • MADC-010736 - Receiver (MA-COM)
  • MAD-85 - Manchester Decorder (Data Delay Devices)
  • MAD1103 - Switching Diode Array (Microsemi Corporation)
  • MAD1104 - Switching Diode Array (Microsemi Corporation)
  • MAD1105 - Switching Diode Array (Microsemi Corporation)
  • MAD1106 - Switching Diode Array (Microsemi Corporation)
  • MAD1107 - Switching Diode Array (Microsemi Corporation)
  • MAD1108 - Switching Diode Array (Microsemi Corporation)
  • MAD1108 - ULTRA LOW CAPACITANCE MULTI-LINE STEERING DIODE (ProTek Devices)
  • MAD1109 - Switching Diode Array (Microsemi Corporation)
Other Datasheets by Tyco Electronics

Full PDF Text Transcription

Click to expand full text

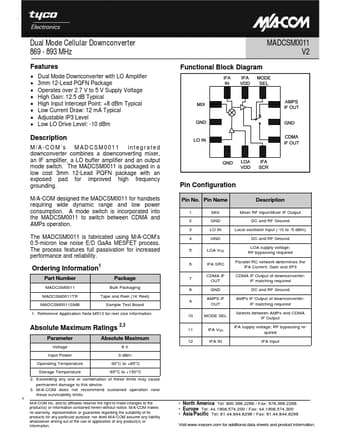

www.DataSheet4U.com Dual Mode Cellular Downconverter 869 - 893 MHz Features • • • • • • • • Dual Mode Downconverter with LO Amplifier 3mm 12-Lead PQFN Package Operates over 2.7 V to 5 V Supply Voltage High Gain: 12.5 dB Typical High Input Intercept Point: +8 dBm Typical Low Current Draw: 12 mA Typical Adjustable IP3 Level Low LO Drive Level: -10 dBm MADCSM0011 V2 Functional Block Diagram ` ` ` Description M/A-COM’s MADCSM0011 integrated downconverter combines a downconverting mixer, an IF amplifier, a LO buffer amplifier and an output mode switch. The MADCSM0011 is packaged in a low cost 3mm 12-Lead PQFN package with an exposed pad for improved high frequency grounding. M/A-COM designed the MADCSM0011 for handsets requiring wide dynamic range and low power consumption.
