MADS-002811-00540T - Multi Purpose Axial Leaded Glass Schottky Diodes

Download the MADS-002811-00540T datasheet PDF (MADS-002811-00540T-MA included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for multi purpose axial leaded glass schottky diodes.

Description

These Schottky diodes are designed to have picosecond switching speed and are housed in a hermetic axial lead glass package.

These devices are designed for use in a variety of applications including mixing, detecting, and switching at both low and high power levels.

Features

  • Glass Hermetically Sealed Packages.
  • Picosecond Switching.
  • Low Leakage Current.
  • Offered in Tape and Reel Packaging.
  • RoHS Compliant Glass Package Style ODS 54 V2.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MADS-002811-00540T-MA-COM.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • MADS-002200-12790T - Surface Mount Zero Bias Schottky Diodes (MACOM)
  • MADS-002545-1307M - SURMOUNTTM Medium Barrier Silicon Schottky Diodes (Tyco Electronics)
  • MADS-001317-1320AG - GaAs Solder Bump Flip Chip Schottky Diode (Tyco Electronics)
  • MAD-85 - Manchester Decorder (Data Delay Devices)
  • MAD1103 - Switching Diode Array (Microsemi Corporation)
  • MAD1104 - Switching Diode Array (Microsemi Corporation)
  • MAD1105 - Switching Diode Array (Microsemi Corporation)
  • MAD1106 - Switching Diode Array (Microsemi Corporation)
  • MAD1107 - Switching Diode Array (Microsemi Corporation)
  • MAD1108 - Switching Diode Array (Microsemi Corporation)
Other Datasheets by MA-COM

Full PDF Text Transcription

Click to expand full text

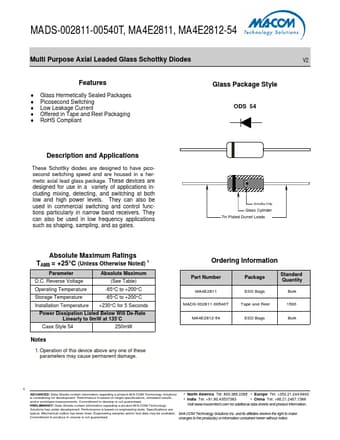

MADS-002811-00540T, MA4E2811, MA4E2812-54 Multi Purpose Axial Leaded Glass Schottky Diodes Features ♦ Glass Hermetically Sealed Packages ♦ Picosecond Switching ♦ Low Leakage Current ♦ Offered in Tape and Reel Packaging ♦ RoHS Compliant Glass Package Style ODS 54 V2 Description and Applications These Schottky diodes are designed to have picosecond switching speed and are housed in a hermetic axial lead glass package. These devices are designed for use in a variety of applications including mixing, detecting, and switching at both low and high power levels. They can also be used in commercial switching and control functions particularly in narrow band receivers. They can also be used in low frequency applications such as shaping, sampling, and as gates.
