TPH3202P - 600V GaN FET

The TPH3202P by Transphorm is a 600V GaN FET. Below is the official datasheet preview.

Datasheet Details

Part number	TPH3202P
Manufacturer	Transphorm
File Size	1.76 MB
Description	600V GaN FET
Datasheet	TPH3202P-Transphorm.pdf

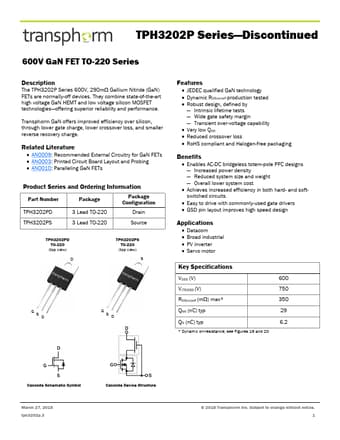

Additional preview pages of the TPH3202P datasheet.

TPH3202P Product details

Description

The TPH3202P Series 600V, 290mΩ Gallium Nitride (GaN) FETs are normally-off devices. offering superior reliability and performance. AN0009: Recommended External Circuitry for GaN FETs AN0003: Printed Circuit Board Layout an

Features

JEDEC qualified GaN technology.
Dynamic RDS(on)eff production tested.
Robust design, defined by.
Intrinsic lifetime tests.
Wide gate safety.
