2SA1681 Datasheet - Toshiba Semiconductor

2SA1681 Silicon PNP Transistor

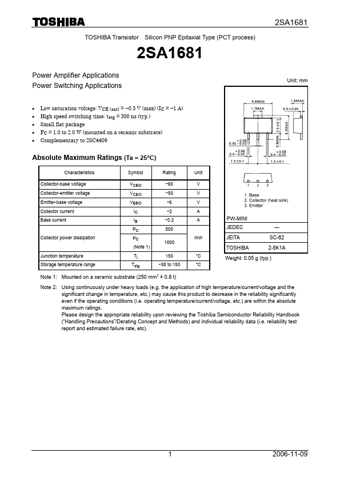

TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT process) 2SA1681 Power Amplifier Applications Power Switching Applications 2SA1681 Unit: mm Low saturation voltage: VCE (sat) = 0.5 V (max) (IC = 1 A) High speed switching time: tstg = 300 ns (typ.) Small flat package PC = 1.0 to 2.0 W (mounted on a ceramic substrate) Complementary to 2SC4409 Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit Collect.

2SA1681 Datasheet (157.16 KB)

Preview of 2SA1681 PDF
2SA1681 Datasheet Preview Page 2 2SA1681 Datasheet Preview Page 3

Datasheet Details

Part number:

2SA1681

Manufacturer:

Toshiba ↗ Semiconductor

File Size:

157.16 KB

Description:

Silicon pnp transistor.
