T4312816A - 8M x 16 SDRAM

Description

The T4312816A is 134,217,728 bits synchronous high data rate Dynamic RAM organized as 4 x 2,097,152 words by 16 bits, fabricated with high performance CMOS technology .

Synchronous design allows precise cycle control with the use of system clock I/O transactions are possible on every clockcycle .

Features

  • 3.3V power supply.
  • Four banks operation.
  • LVTTL compatible with multiplexed address.
  • All inputs are sampled at the positive going edge of system clock.
  • Burst Read Single-bit Write operation.
  • DQM for masking.
  • Auto refresh and self refresh.
  • 64ms refresh period (4K cycle).
  • MRS cycle with address key programs - CAS Latency ( 2 & 3 ) - Burst Length ( 1 , 2 , 4 , 8 & full page) - Burst Type (Sequential & Interleave).

📥 Download Datasheet

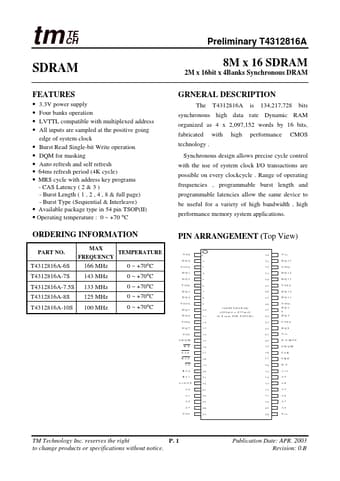

Datasheet preview – T4312816A
