TP44100SG - 650V GaN HEMT

TP44100SG Description

TP44100SG SUPERIOR GaN TP44100SG * 90 mΩ, 650 V GaN HEMT 1.0 .
The TP44100SG is a 90 mΩ 650 V SUPERIOR GaN HEMT power device.

TP44100SG Features

* 650 V e-mode power HEMT
* RDSON: 90 mΩ
* IDS: 19 A (max) / IDSpulse: 30 A (max)
* ESD protection on all pins
* Adjustable turn-on/-off speed
* Reverse conduction capability
* Zero reverse-recovery loss
* High switching frequency capab

TP44100SG Applications

* Ac-dc, dc-dc, dc-ac converters
* Totem-pole and bi-directional PFCs
* Half- and full-bridge LLC converters
* High-frequency electronic transformers
* Mobile chargers and laptop adapters
* EV chargers and power tools
* LED and motor drives

📥 Download Datasheet

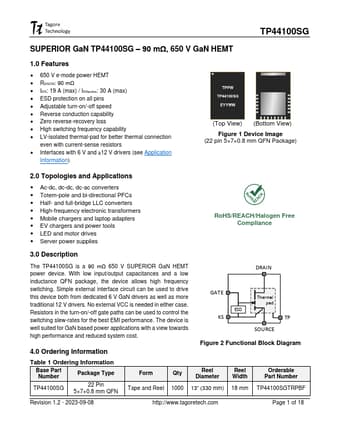

Preview of TP44100SG PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TP44100SG
Manufacturer
Tagore
File Size
920.71 KB
Datasheet
TP44100SG-Tagore.pdf
Description
650V GaN HEMT
