TP44100NM - 650V GaN HEMT

TP44100NM Description

Product Summary Only TP44100NM TP44100NM * 90mΩ, 650V GaN HEMT with Integrated Driver and Protection 1.0 .
The TP44100NM is a 90mΩ, 650V GaN HEMT device with integrated driver circuit.

TP44100NM Features

* 650V enhancement mode HEMT with integrated driver
* 90mΩ RDSON
* 5V PWM input
* UVLO protection
* Zero reverse recovery
* Low quiescent current driver
* Adjustable turn-on slew rate
* Dv/Dt immunity both with/without driver-supply

TP44100NM Applications

* As switching FETs in singles, or in pairs as half-bridges
* AC-DC, DC-DC, DC-AC converters
* PFC applications (totem pole and standard)
* High frequency LLC converters
* Mobile chargers and laptop adapters
* LED and motor drives
* Server powe

📥 Download Datasheet

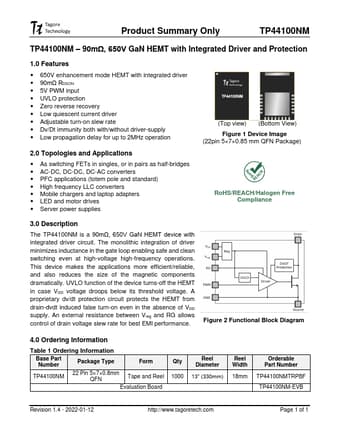

Preview of TP44100NM PDF

Datasheet Details

Part number
TP44100NM
Manufacturer
Tagore
File Size
191.52 KB
Datasheet
TP44100NM-Tagore.pdf
Description
650V GaN HEMT
