TW083N65C - Silicon Carbide N-Channel MOSFET

Product Overview

TOSHIBA

Part number	TW083N65C
Manufacturer	Toshiba
File Size	846.44 KB
Description	Silicon Carbide N-Channel MOSFET
Datasheet	TW083N65C Datasheet

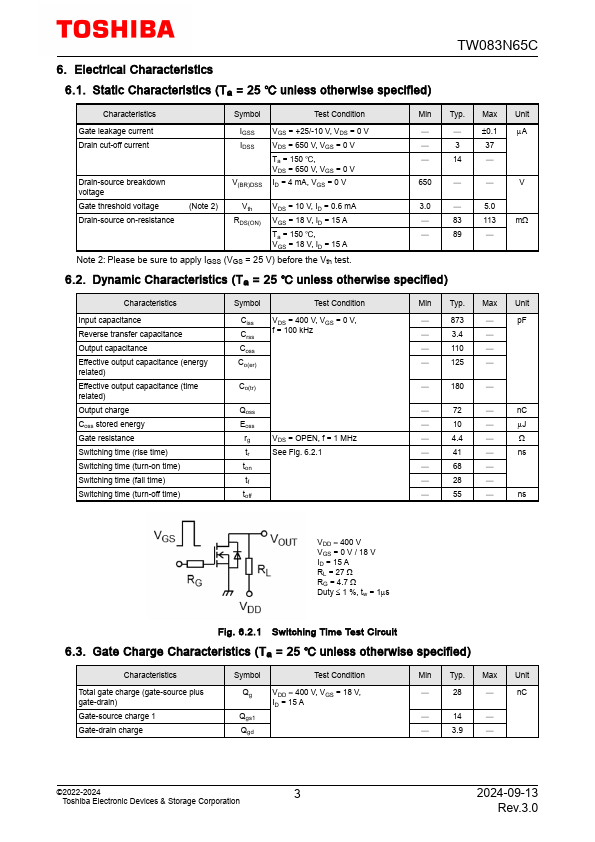

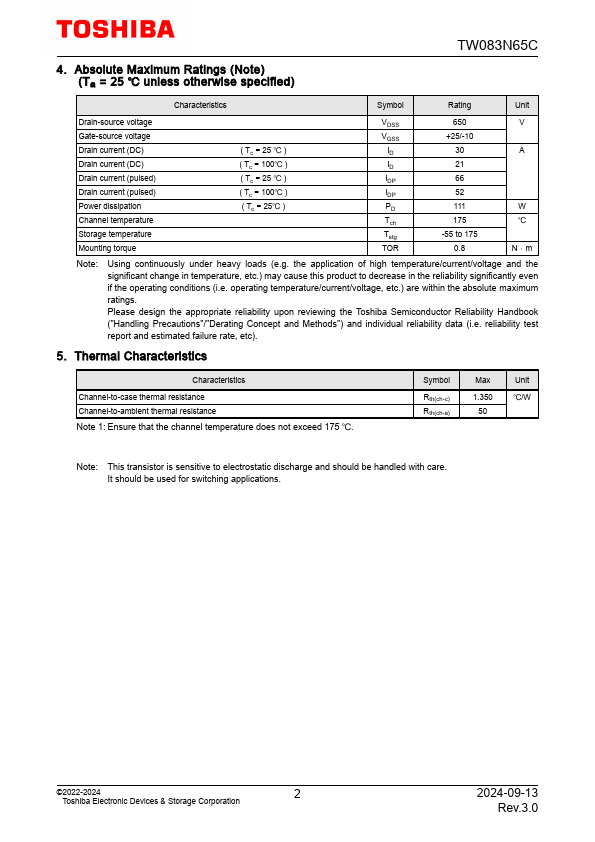

Additional preview pages of the TW083N65C datasheet.

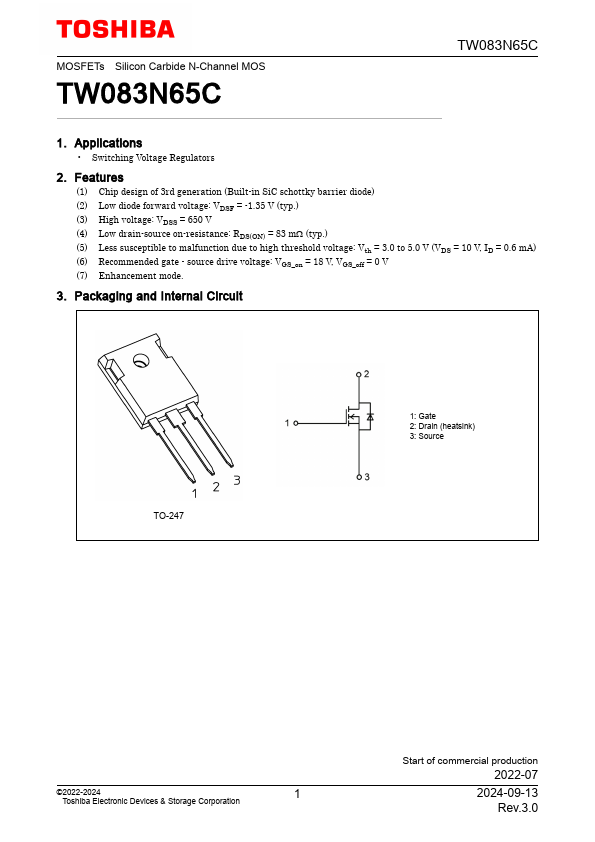

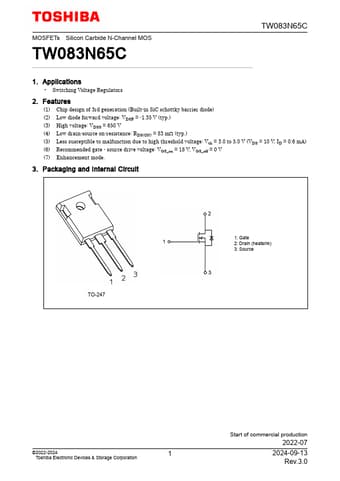

(1) Chip design of 3rd generation (Built-in SiC schottky barrier diode) (2) Low diode forward voltage: VDSF = -1.35 V (typ. ) (3) High voltage: VDSS = 650 V (4) Low drain-source on-resistance: RDS(ON) = 83 mΩ (typ. ) (5) Less susceptible to malfunction due to high threshold voltage: Vth = 3.0 to 5.0 V (VDS = 10 V, ID = 0.6 mA) (6) Recommended gate - source drive voltage: VGS_on = 18 V, VGS_off = 0 V (7) Enhancement mode. 3. Packaging and Internal Circuit TO-247 1: Gate 2: Drain (heatsink) 3: Sou.
