RMFS50C, RMF1W - Metal Film Resistor Normal & Miniature Style

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RMFS50C, RMF1W. Please refer to the document for exact specifications by model.

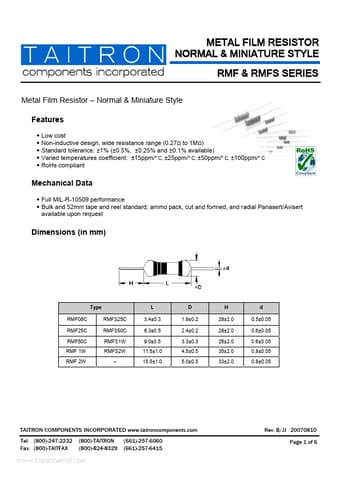

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number RMFS50C, RMF1W
Manufacturer TAITRON Components
File Size 283.41 KB
Description Metal Film Resistor Normal & Miniature Style
Datasheet download datasheet RMF1W_TAITRONComponents.pdf
Note This datasheet PDF includes multiple part numbers: RMFS50C, RMF1W.
Please refer to the document for exact specifications by model.

RMFS50C Product details

Description

Power Rating at 70° C Maximum Working Voltage Maximum Overload Voltage Dielectric Withstanding Voltage Temperature Coefficient Resistance Range ±0.5%, ±1% ±0.1%, ±0.25% RMF 08C 1/8 200 400 300 RMF S25C 1/4 200 400 400 RMF 25C 1/4 250 500 500 RMF S50C 1/2 300 600 500 RMF 50C 1/2 350 700 500 RMF S1W 1 400 800 700 RMF 1W 1 500 1000 1000 RMF S2W 2 500 1000 1000 RMF 2W 2 500 1000 1000 Unit W V V V ppm/° C ±15ppm/° C, ±25ppm/° C, ±50ppm/° C, ±100ppm/° C 10~1M Ω 100~100K -55 to +155 °C Operating Tem

Features
