RMFS2W, RMF1W Datasheet - TAITRON Components

RMFS2W Metal Film Resistor Normal & Miniature Style

Power Rating at 70° C Maximum Working Voltage Maximum Overload Voltage Dielectric Withstanding Voltage Temperature Coefficient Resistance Range ±0.5%, ±1% ±0.1%, ±0.25% RMF 08C 1/8 200 400 300 RMF S25C 1/4 200 400 400 RMF 25C 1/4 250 500 500 RMF S50C 1/2 300 600 500 RMF 50C 1/2 350 700 500 RMF S1W 1.

RMFS2W Features

* Low cost Non-inductive design, wide resistance range (0.27Ω to 1MΩ) Standard tolerance: ±1% (±0.5%, ±0.25% and ±0.1% available) Varied temperatures coefficient: ±15ppm/° C, ±25ppm/° C, ±50ppm/° C, ±100ppm/° C RoHs compliant Mechanical Data

RMF1W_TAITRONComponents.pdf

This datasheet PDF includes multiple part numbers: RMFS2W, RMF1W. Please refer to the document for exact specifications by model.

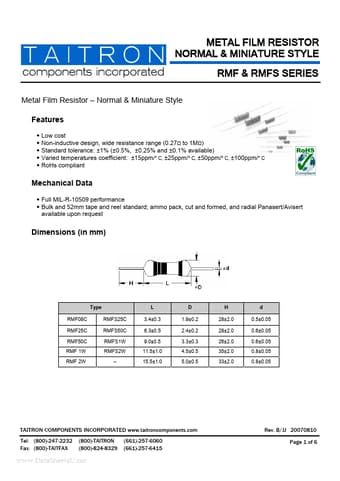

RMFS2W Datasheet Preview Page 2 RMFS2W Datasheet Preview Page 3

Datasheet Details

Part number:

RMFS2W, RMF1W

Manufacturer:

TAITRON Components

File Size:

283.41 KB

Description:

Metal film resistor normal & miniature style.

Note:

This datasheet PDF includes multiple part numbers: RMFS2W, RMF1W.
Please refer to the document for exact specifications by model.
