RMFS100, RMF100 - Film Resistors

Datasheet Details

Part number	RMFS100, RMF100
Manufacturer	Riedon Powertron
File Size	542.21 KB
Description	Film Resistors

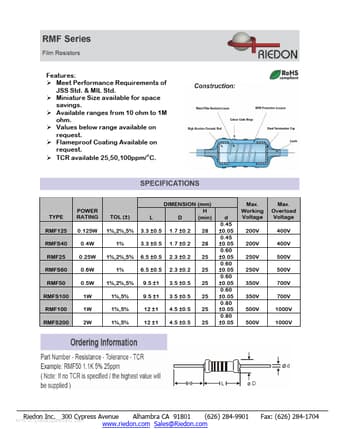

Datasheet	RMF100_RiedonPowertron.pdf
Note	This datasheet PDF includes multiple part numbers: RMFS100, RMF100. Please refer to the document for exact specifications by model.

Meet Performance Requirements of JSS Std. & MIL Std. Miniature Size available for space savings. Available ranges from 10 ohm to 1M ohm. Values below range available on request. Flameproof Coating Available on request. TCR available 25,50,100ppm/°C. TYPE RMF125 RMFS40 RMF25 RMFS60 RMF50 RMFS100 RMF100 RMFS200 POWER RATING 0.125W 0.4W 0.25W 0.6W 0.5W 1W 1W 2W TOL (±) 1%,2%,5% 1% 1%,2%,5% 1% 1%,2%,5% 1%,5% 1%,5% 1%,5% L 3.3 ±0.5 3.3 ±0.5 6.5 ±0.5 6.5 ±0.5 9.5 ±1 9.5 ±1 12 ±1 12 ±1.
