RMF - Metal Film Resistor Normal & Miniature Style

TAITRON Components Incorporated

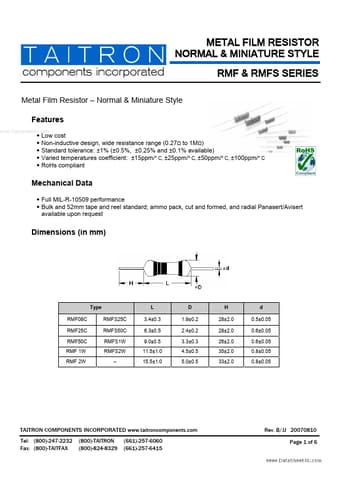

RMF Datasheet Preview — Preview of RMF PDF

Datasheet Details

Part number	RMF
Manufacturer	TAITRON Components Incorporated
File Size	299.18 KB
Description	Metal Film Resistor Normal & Miniature Style
Datasheet	RMF_TAITRONComponentsIncorporated.pdf

RMF Product details

Description

Power Rating at 70° C www.DataSheet4U.com Maximum Working Voltage RMF 08C 1/8 200 400 300 RMF S25C 1/4 200 400 400 RMF 25C 1/4 250 500 500 RMF S50C 1/2 300 600 500 RMF 50C 1/2 350 700 500 RMF S1W 1 400 800 700 RMF 1W 1 500 1000 1000 RMF S2W 2 500 1000 1000 RMF 2W 2 500 1000 1000 Unit W V V V ppm/° C Maximum Overload Voltage Dielectric Withstanding Voltage Temperature Coefficient Resistance Range ±0.5%, ±1% ±0.1%, ±0.25% ±15ppm/° C, ±25ppm/° C, ±50ppm/° C, ±100ppm/° C 10~1M Ω 100~100

Features

www. DataSheet4U. com.
Low cost Non-inductive design, wide resistance range (0.27Ω to 1MΩ) Standard tolerance: ±1% (±0.5%, ±0.25% and ±0.1% available) Varied temperatures coefficient: ±15ppm/° C, ±25ppm/° C, ±50ppm/° C, ±100ppm/° C RoHs compliant Mechanical Data.
Full MIL-R-10509 performance.
Bulk and 52mm tape and reel standard; ammo pack, cut and formed, and radial Panasert/Avisert available upon request Dimensions (in mm) T.
