HV2321 Datasheet PDF - Supertex Analog Switch Specs

HV2321 - Analog Switch

Datasheet Summary

Description

The Supertex HV2321 is a low charge injection, 8-channel, unipolar, negative high voltage, analog switch integrated circuit (IC) with bleed resistors.

Features

Low on-resistance, 14Ω max.
Integrated bleed resistors on the outputs.
3.3 or 5.0V CMOS input logic level.
20MHz data shift clock frequency.
Very low quiescent power dissipation (-10µA).
Low parasitic capacitance.
DC to 50MHz small signal frequency response.
-60dB typical off-isolation at 5.0MHz.
CMOS logic circuitry for low power.
Excellent noise immunity.
Cascadable serial data regis.

Datasheet Details

Part number	HV2321
Manufacturer	Supertex
File Size	389.41 KB
Description	Analog Switch
Datasheet	HV2321 Datasheet

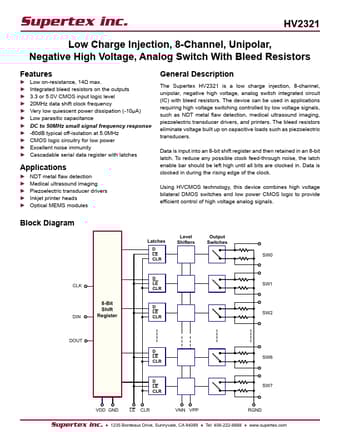

Additional preview pages of the HV2321 datasheet.

📁 Similar Datasheet

HV232 - Low Charge Injection 8-Channel High Voltage Analog Switch (Supertex Inc)

HV232 - High-Voltage Analog Switch (Microchip)

HV236WHB-N00 - TFT LCD (BOE)

HV238 - 16-Channel High-Voltage Analog Switch (Microchip)

HV2 - Fast Switching High Voltage Si-Rectifiers (Diotec Semiconductor)

HV200 - High Voltage Coils (ECM Electronics Limited)

HV200F04 - 4.0kV 200mA HIGH VOLTAGE DIODE (GETE ELECTRONICS)

HV200F06 - 6.0kV 200mA HIGH VOLTAGE DIODE (GETE ELECTRONICS)

HV20220 - High Voltage Analog Switches (Supertex Inc)

HV2036 - Half Bridge High Voltage Rectifier Assembly (GETE)

Full PDF Text Transcription

Click to expand full text

Supertex inc. HV2321 Low Charge Injection, 8-Channel, Unipolar, Negative High Voltage, Analog Switch With Bleed Resistors Features ►► Low on-resistance, 14Ω max. ►► Integrated bleed resistors on the outputs ►► 3.3 or 5.0V CMOS input logic level ►► 20MHz data shift clock frequency ►► Very low quiescent power dissipation (-10µA) ►► Low parasitic capacitance ►► DC to 50MHz small signal frequency response ►► -60dB typical off-isolation at 5.

Published: Dec 10, 2008 |
