HV2 - Fast Switching High Voltage Si-Rectifiers

📥 Download Datasheet

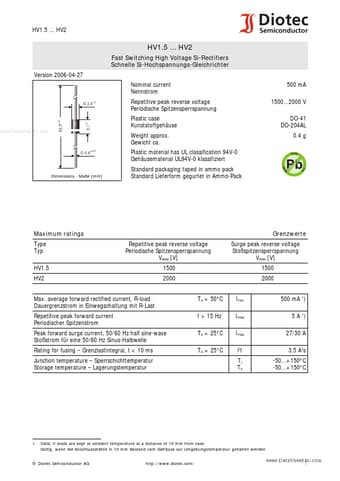

Datasheet preview – HV2

Datasheet Details

Part number HV2
Manufacturer Diotec Semiconductor
File Size 93.98 KB
Description Fast Switching High Voltage Si-Rectifiers
Datasheet download datasheet HV2 Datasheet
Additional preview pages of the HV2 datasheet.

📁 Similar Datasheet

  • HV200 - High Voltage Coils (ECM Electronics Limited)
  • HV200F04 - 4.0kV 200mA HIGH VOLTAGE DIODE (GETE ELECTRONICS)
  • HV200F06 - 6.0kV 200mA HIGH VOLTAGE DIODE (GETE ELECTRONICS)
  • HV20220 - High Voltage Analog Switches (Supertex Inc)
  • HV20320 - 8-Channel High Voltage Analog Switch (Supertex)
  • HV2036 - Half Bridge High Voltage Rectifier Assembly (GETE)
  • HV204 - Low Charge Injection 8-Channel High Voltage Analog Switch (Supertex)
  • HV20720 - Dual 1 of 4 High Voltage Analog Switch (Supertex Inc)
  • HV20822 - High Voltage Analog Switch (Supertex Inc)
  • HV208QX1-100 - TFT LCD (BOE)
Other Datasheets by Diotec Semiconductor

    Full PDF Text Transcription

    Click to expand full text
    HV1.5 ... HV2 HV1.5 ... HV2 Fast Switching High Voltage Si-Rectifiers Schnelle Si-Hochspannungs-Gleichrichter Version 2006-04-27 Nominal current Nennstrom Ø 2.6 -0.1 500 mA 1500...2000 V DO-41 DO-204AL 0.4 g Repetitive peak reverse voltage Periodische Spitzensperrspannung Plastic case Kunststoffgehäuse Weight approx. Gewicht ca. ±0.5 Type 62.5 www.DataSheet4U.com 5.1 -0.1 Ø 0.8±0.05 Plastic material has UL classification 94V-0 Gehäusematerial UL94V-0 klassifiziert Standard packaging taped in ammo pack Standard Lieferform gegurtet in Ammo-Pack Dimensions - Maße [mm] Maximum ratings Type Typ HV1.5 HV2 Max.
