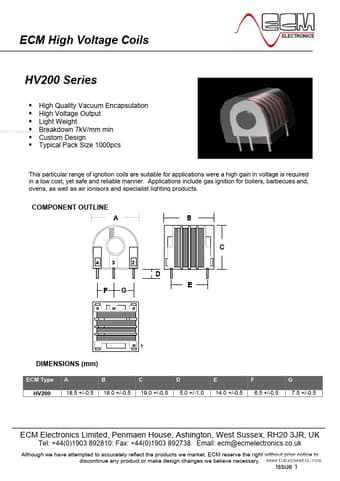

    ECM High Voltage Coils HV200 Series ƒ High Quality Vacuum Encapsulation ƒ High Voltage Output ƒ Light Weight ƒ Breakdown 7kV/mm min www.DataSheet4U.com ƒ Custom Design ƒ Typical Pack Size 1000pcs This particular range of ignotion coils are suitable for applications were a high gain in voltage is required in a low cost, yet safe and reliable manner. Applications include gas ignition for boilers, barbecues and, ovens, as well as air ionisors and specialist lighting products. COMPONENT OUTLINE DIMENSIONS (mm) ECM Type HV200 A 18.5 +/-0.5 B 18.0 +/-0.5 C 19.0 +/-0.5 D 5.0 +/-1.0 E 14.0 +/-0.5 F 6.5 +/-0.5 G 7.5 +/-0.5 ECM Electronics Limited, Penmaen House, Ashington, West Sussex, RH20 3JR, UK Tel: +44(0)1903 892810: Fax: +44(0)1903 892738. Email: ecm@ecmelectronics.co.
