HV20720 - Dual 1 of 4 High Voltage Analog Switch

Description

The Supertex HV207 is an 8-channel high-voltage analog switch integrated circuit (IC) configured as a dual 1 of 4 analog switch.

The 2 sets of 4 analog switches are controlled independently with the 2 independent 1:4 decoders.

Features

  • ❏ ❏ ❏ ❏ ❏ ❏ ❏ ❏ ❏ HVCMOS® technology for high performance Operating voltage of up 200V Very low quiescent current-10µA Low parasitic capacitances Over 20MHz bandwidth -58dB typical output off isolation at 5MHz 5.0V CMOS logic circuitry Excellent noise immunity Flexible high voltage supplies General.

📥 Download Datasheet

Datasheet Details

Part number HV20720
Manufacturer Supertex Inc
File Size 312.82 KB
Description Dual 1 of 4 High Voltage Analog Switch
Datasheet download datasheet HV20720 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HV200 High Voltage Coils ECM Electronics Limited
HV200F04 4.0kV 200mA HIGH VOLTAGE DIODE GETE ELECTRONICS
HV200F06 6.0kV 200mA HIGH VOLTAGE DIODE GETE ELECTRONICS
HV20320 8-Channel High Voltage Analog Switch Supertex
HV2036 Half Bridge High Voltage Rectifier Assembly GETE

Other Datasheets by Supertex Inc

Part Number Description
HV20220 High Voltage Analog Switches
HV20822 High Voltage Analog Switch
HV209 12-Channel High Voltage Analog Switch
HV214 High Voltage Analog Switch
HV232 Low Charge Injection 8-Channel High Voltage Analog Switch

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

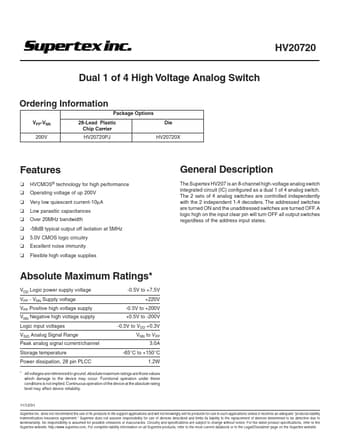

HV20720 Dual 1 of 4 High Voltage Analog Switch Ordering Information Package Options VPP-VNN 200V 28-Lead Plastic Chip Carrier HV20720PJ Die HV20720X Features ❏ ❏ ❏ ❏ ❏ ❏ ❏ ❏ ❏ HVCMOS® technology for high performance Operating voltage of up 200V Very low quiescent current-10µA Low parasitic capacitances Over 20MHz bandwidth -58dB typical output off isolation at 5MHz 5.0V CMOS logic circuitry Excellent noise immunity Flexible high voltage supplies General Description The Supertex HV207 is an 8-channel high-voltage analog switch integrated circuit (IC) configured as a dual 1 of 4 analog switch. The 2 sets of 4 analog switches are controlled independently with the 2 independent 1:4 decoders. The addressed switches are turned ON and the unaddressed switches are turned OFF.
