HV2301 - Enhanced Analog Switch

Datasheet Summary

Description

The Supertex HV2301 is a low charge injection, 8-channel, high voltage analog switch integrated circuit (IC) with b

Features

  • HVCMOS technology for high performance.
  • Integrated bleed resistors on the outputs.
  • 8 Channels of high voltage analog switch.
  • 3.3 or 5.0V CMOS input logic level.
  • 20MHz data shift clock frequency.
  • Very low quiescent power dissipation (-10µA).
  • Low parasitic capacitance.
  • DC to 50MHz analog signal frequency.
  • -60dB typical off-isolation at 5MHz.
  • CMOS logic circuitry for low power.
  • Excellent n.

📥 Download Datasheet

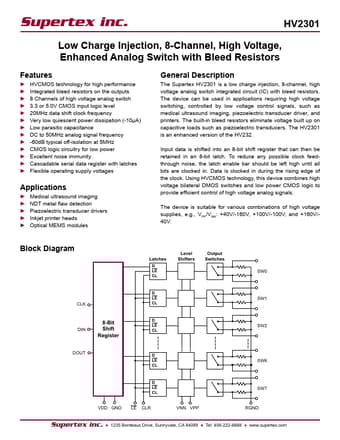

Datasheet preview – HV2301

Datasheet Details

Part number HV2301
Manufacturer Supertex
File Size 446.21 KB
Description Enhanced Analog Switch
Datasheet download datasheet HV2301 Datasheet
Additional preview pages of the HV2301 datasheet.
