1SS270A - SILICON EPITAXIAL PLANAR DIODE

1SS270A Description

1SS270A SILICON EPITAXIAL PLANAR DIODE .

1SS270A Features

* ! Low capacitance ! Short reverse recovery time ! High reliability Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.004 ounces, 0.13 grams DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in mil

📥 Download Datasheet

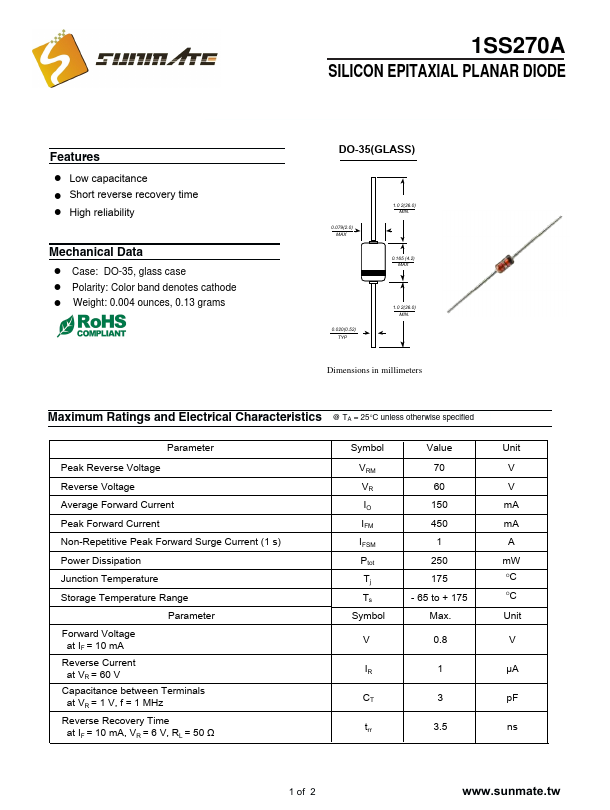

Preview of 1SS270A PDF

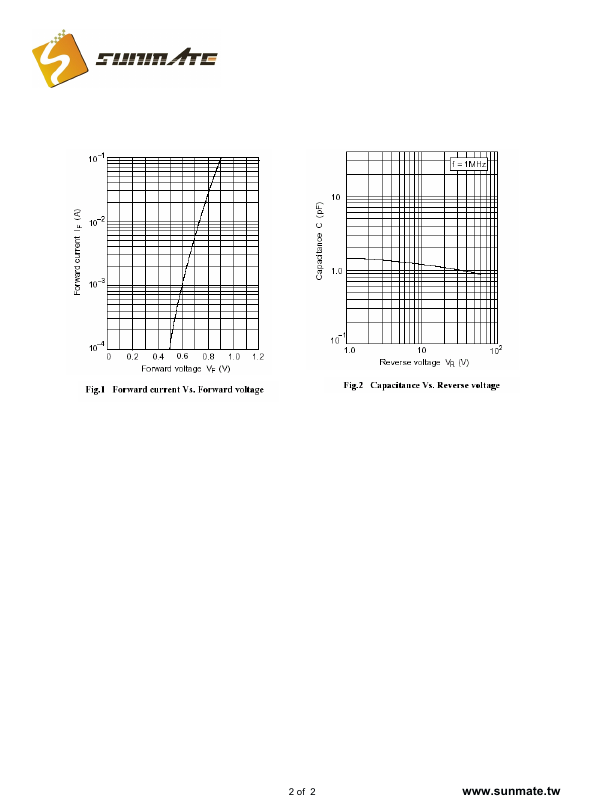

datasheet Preview Page 2

Datasheet Details

Part number
1SS270A
Manufacturer
Sunmate
File Size
555.89 KB
Datasheet
1SS270A-Sunmate.pdf
Description
SILICON EPITAXIAL PLANAR DIODE
