1SS106

The 1SS106 is SCHOTTKY BARRIER RECTIFIER DIODES designed by Sunmate.

Product Overview

Sunmate

Part number	1SS106
Manufacturer	Sunmate
File Size	256.77 KB
Description	SCHOTTKY BARRIER RECTIFIER DIODES
Datasheet	1SS106-Sunmate.pdf

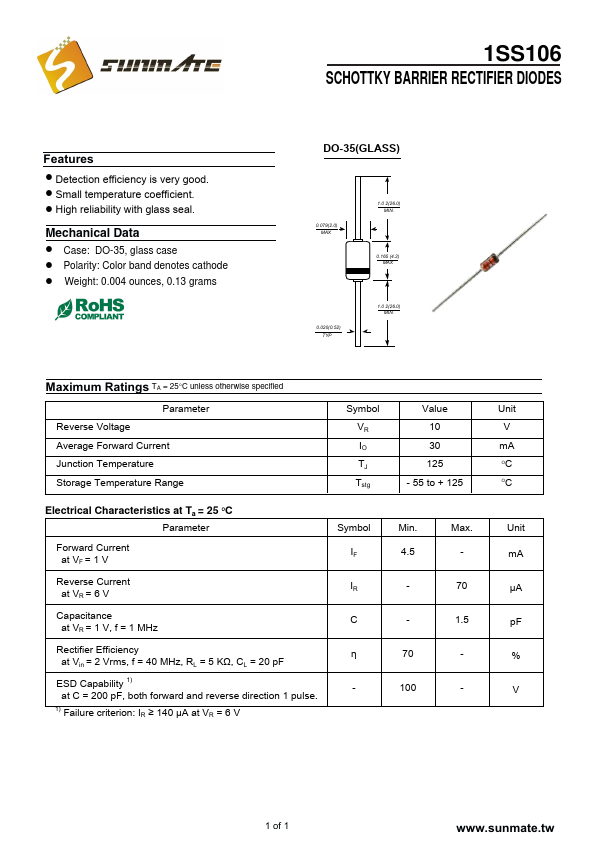

Additional preview pages of the 1SS106 datasheet.

! Detection efficiency is very good. ! Small temperature coefficient. ! High reliability with glass seal. Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.004 ounces, 0.13 grams DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Maximum Ratings TA = 25°C unless otherwise specified Parameter Reverse Voltage Average Forward Current Junction Temperature Storage Temperature Range Symbol VR IO TJ Tstg Value.
