1SS146

The 1SS146 is AXIAL LEADED FAST SWITCHING DIODE designed by Sunmate.

Product Overview

Sunmate

Part number	1SS146, 1SS141
Manufacturer	Sunmate
File Size	790.91 KB
Description	AXIAL LEADED FAST SWITCHING DIODE
Datasheet	1SS141-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: 1SS146, 1SS141. Please refer to the document for exact specifications by model.

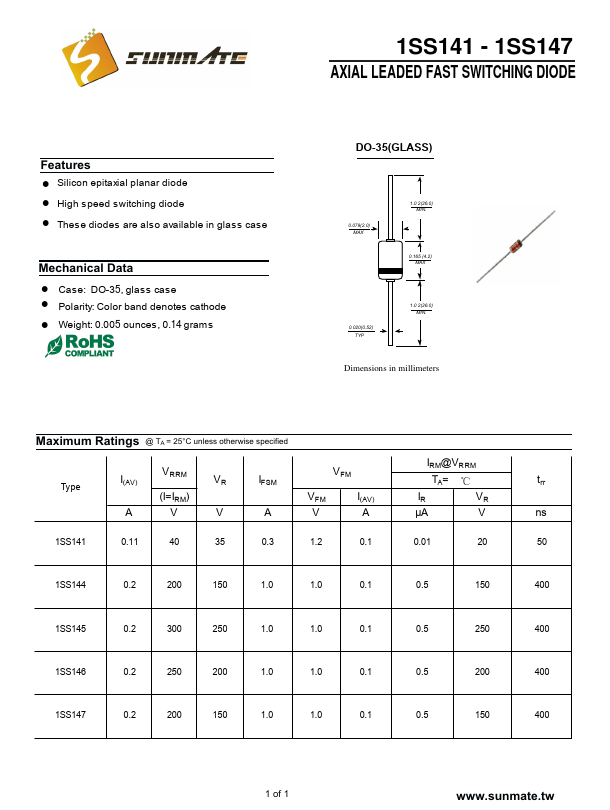

Additional preview pages of the 1SS146 datasheet.

! Silicon epitaxial planar diode ! High speed switching diode ! These diodes are also available in glass case Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.005 ounces, 0.14 grams DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters Maximum Ratings @ TA = 25°C unless otherwise specified Type I(AV) VRRM VR IFSM VFM IRM@VRRM TA= trr (I=IRM) VFM I(AV) IR VR A V V.
