1SS166

The 1SS166 is HIGH SPEED SWITHING DIODES designed by Sunmate.

Product Overview

Sunmate

📥 Download Datasheet

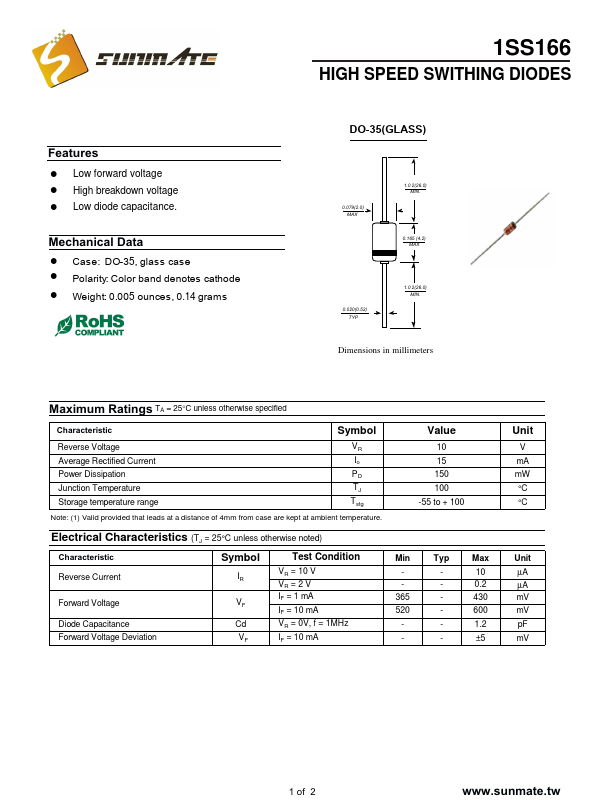

1SS166 HIGH SPEED SWITHING DIODES by Sunmate - Datasheet Preview — Datasheet preview – 1SS166

Datasheet Details

Part number	1SS166
Manufacturer	Sunmate
File Size	487.38 KB
Description	HIGH SPEED SWITHING DIODES
Datasheet	1SS166-Sunmate.pdf

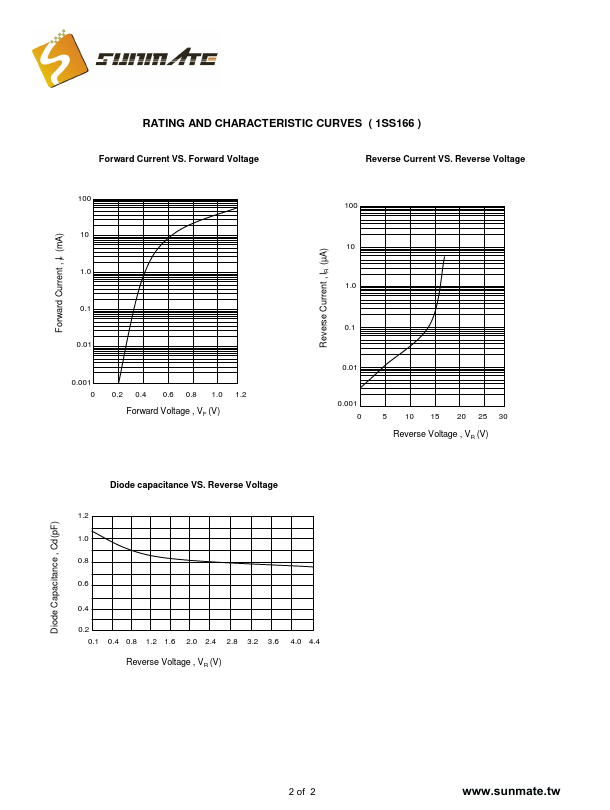

Additional preview pages of the 1SS166 datasheet.

Product details

Features

! Low forward voltage ! High breakdown voltage ! Low diode capacitance. Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.005 ounces, 0.14 grams 1SS166 HIGH SPEED.
