1SS108

The 1SS108 is SILICON SCHOTTKY BARRIER DIODE designed by Sunmate.

Product Overview

Sunmate

Part number	1SS108
Manufacturer	Sunmate
File Size	296.50 KB
Description	SILICON SCHOTTKY BARRIER DIODE
Datasheet	1SS108-Sunmate.pdf
Additional preview pages of the 1SS108 datasheet.

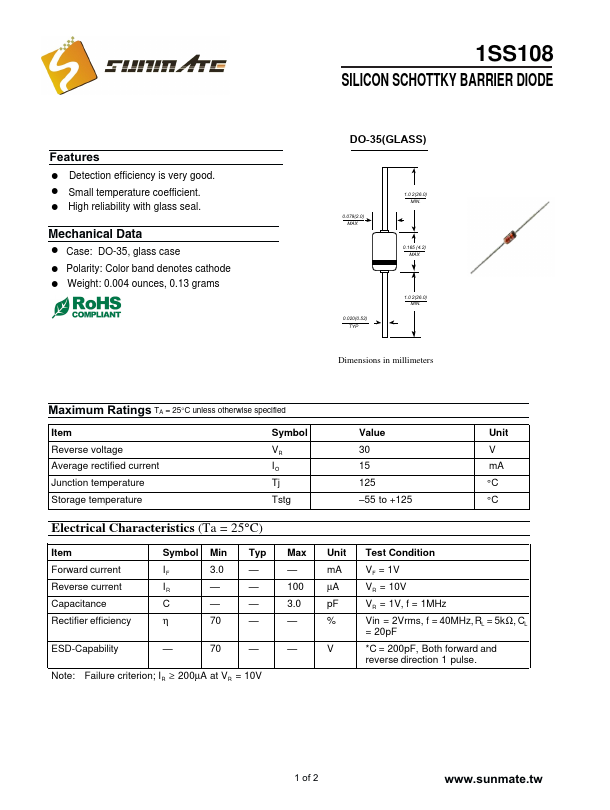

! Detection efficiency is very good. ! Small temperature coefficient. ! High reliability with glass seal. Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.004 ounces, 0.13 grams DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters Maximum Ratings TA = 25°C unless otherwise specified Item Reverse voltage Average rectified current Junction temperature Storage temperature Symbol V.
