CEP1311F - Transformer

The CEP1311F by Sumida is a Transformer. Below is the official datasheet preview.

📥 Download Datasheet

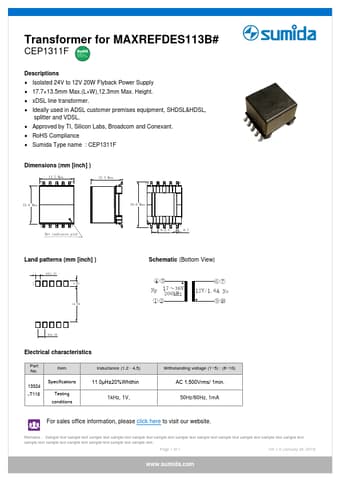

Official preview page of the CEP1311F Transformer datasheet (Sumida).

Datasheet Details

Part number CEP1311F
Manufacturer Sumida
File Size 210.05 KB
Description Transformer
Datasheet download datasheet CEP1311F-Sumida.pdf
Additional preview pages of the CEP1311F datasheet.

CEP1311F Product details

Description

Isolated 24V to 12V 20W Flyback Power Supply 17.7×13.5mm Max.(L×W),12.3mm Max. xDSL line transformer. Ideally used in ADSL customer premises equipment, SHDSL&HDSL, splitter and VDSL. Approved by TI, Silicon Labs, Broadcom and Conexant. RoHS Compliance Sumida Type name : CEP1311F Dimensions (mm [inch] ) 13.5 Max.12.5 Max.6 10 10 6 15.0 Max.18.0 Max.5 1 Dot indicates pin1 1 5 8-2.5 0.7 Land patterns (mm [inch] ) 10X1.27 2.03
