CEP1311C - ADSL Transformer

The CEP1311C by Sumida is a ADSL Transformer. Below is the official datasheet preview.

📥 Download Datasheet

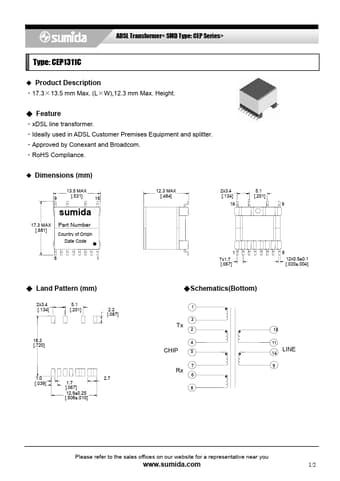

Official preview page of the CEP1311C ADSL Transformer datasheet (Sumida).

Datasheet Details

Part number CEP1311C
Manufacturer Sumida
File Size 137.00 KB
Description ADSL Transformer
Datasheet download datasheet CEP1311C-Sumida.pdf
Additional preview pages of the CEP1311C datasheet.

CEP1311C Product details

Description

17.3×13.5 mm Max. Feature xDSL line transformer.Ideally used in ADSL Customer Premises Equipment and splitter.Approved by Conexant and Broadcom.RoHS Compliance. Dimensions (mm) 13.5 MAX 9 [.531] 16 sumida 17.3 MAX [.681] Part Number Country of Origin Date Code 81 12.3 MAX [.484] 2x3.4 [.134] 16 1 7x1.7 [.067] 5.1 [.201] 9 8 12x0.5±0.1 [.020±.004] Land Pattern (mm) 2x3.4 [.134] 5.1 [.201] 2.2 [.087] 18.3 [.720] 1.0 [.039] 1.7
