CEP1311E - ADSL Transformer

Description

15.8mm ×13.8mm (L×W),13.0mm Max.

Height.

xDSL line transformer.

Ideally used in complete telecomm equipment for ADSL/ADSL2/ADSL 2+ application.

Approved by Conexant and Texas Instruments.

13.8 Max.

15.8 Max.

12×0.

📥 Download Datasheet

Datasheet Details

Part number CEP1311E
Manufacturer Sumida
File Size 179.39 KB
Description ADSL Transformer
Datasheet download datasheet CEP1311E Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CEP13N07 N-Channel MOSFET CET
CEP13N10 N-Channel MOSFET CET
CEP13N10L N-Channel MOSFET CET
CEP13N5 N-Channel MOSFET CET
CEP13N5A N-Channel Enhancement Mode Field Effect Transistor CET

Other Datasheets by Sumida

Part Number Description
CEP1311C ADSL Transformer
CEP1311F Transformer
CEP1110 Pulse transformer
CEP1112 Pulse transformer
CEP125 Power Inductors

Full PDF Text Transcription

Click to expand full text

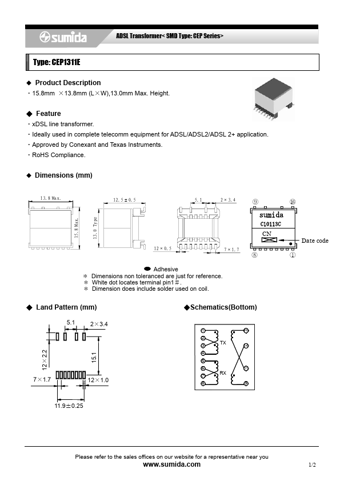

ADSL Transformer< SMD Type: CEP Series> Type: CEP1311E ◆ Product Description 15.8mm ×13.8mm (L×W),13.0mm Max. Height. ◆ Feature xDSL line transformer. Ideally used in complete telecomm equipment for ADSL/ADSL2/ADSL 2+ application. Approved by Conexant and Texas Instruments. RoHS Compliance. ◆ Dimensions (mm) 13.8 Max. 15.8 Max. 13.0 Type 12.5±0.5 5.1 2×3.4 12×0.5 7×1.7 Adhesive ＊ Dimensions non toleranced are just for reference. ＊ White dot locates terminal pin1＃. ＊ Dimension does include solder used on coil. ⑨⑯ sumida C10113C CN ● Date code ⑧① ◆ Land Pattern (mm) 5.1 2×3.4 12×2.2 15.1 7×1.7 12×1.0 ◆Schematics(Bottom) 1 2 3 TX 4 5 6 7 RX 8 16 14 11 9 11.9±0.25 Please refer to the sales offices on our website for a representative near you www.sumida.
