CEP1112 - Pulse transformer

Name: CEP1112
SKU: CEP1112-1097696

Sumida

The CEP1112 by Sumida is a Pulse transformer. Below is the official datasheet preview.

Datasheet Details

Part number	CEP1112
Manufacturer	Sumida
File Size	219.15 KB
Description	Pulse transformer
Datasheet	CEP1112-Sumida.pdf

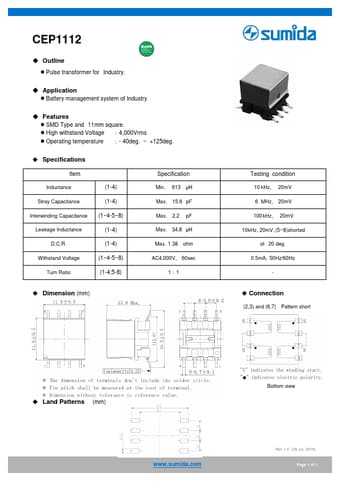

Additional preview pages of the CEP1112 datasheet.

s.
SMD Type and 11mm square.
High withstand Voltage ： 4,000Vrms.
Operating temperature ： - 40deg. ~ +125deg.
Specifications Item Inductance (1-4) Stray Capacitance (1-4) Interwinding Capacitance (1~4-5~8) Leakage Inductance (1-4) D. C. R. (1-4) Withstand Voltage (1~4-5~8) Turn Ratio (1-4:5-8) Specification Min. 613 μH Max. 15.6 pF Max. 2.2 pF Max. 34.8 μH Max. 1.38 ohm AC4,000V, 60sec 1：1.
Dimension (mm) Testing condition 10 kHz, 20mV 6 MHz, 20mV 100 kH.
