ILX523A - 2700 pixel CCD Linear Sensor

Sony Corporation

📥 Download Datasheet

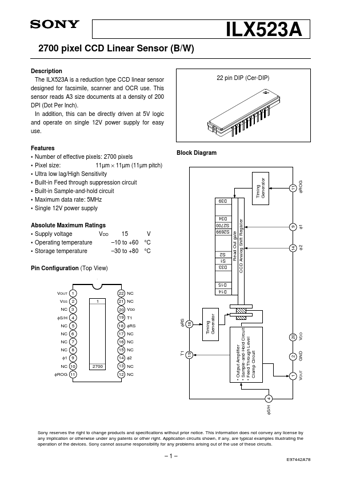

ILX523A Datasheet Preview — Preview of ILX523A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ILX523A
Manufacturer	Sony Corporation
File Size	207.44 KB
Description	2700 pixel CCD Linear Sensor
Datasheet	ILX523A_SonyCorporation.pdf

ILX523A Product details

Description

The ILX523A is a reduction type CCD linear sensor designed for facsimile, scanner and OCR use.

Features

Number of effective pixels: 2700 pixels.
Pixel size: 11µm × 11µm (11µm pitch).
Ultra low lag/High Sensitivity.
Built-in Feed through suppression circuit.
Built-in Sample-and-hold circuit.
Maximum data rate: 5MHz.
Single 12V power supply Absolute Maximum Ratings 15.
Supply voltage VDD.
Operating temperature.
10 to +60.
Storage temperature.
30 to +80 Pin Configuration (Top View) 22 pin DIP (C.
