ILX522K - 2048 X 2pixel CCD Linear Sensor

Sony Corporation

📥 Download Datasheet

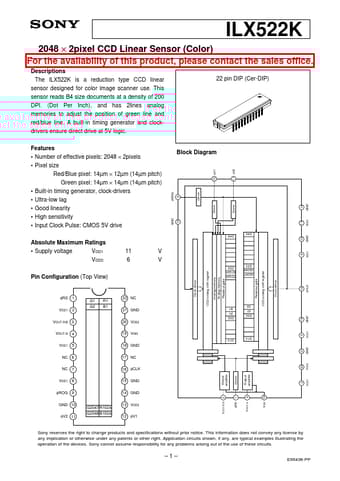

ILX522K Datasheet Preview — Preview of ILX522K PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ILX522K
Manufacturer	Sony Corporation
File Size	180.14 KB
Description	2048 X 2pixel CCD Linear Sensor
Datasheet	ILX522K_SonyCorporation.pdf

ILX522K Product details

Description

The ILX522K is a reduction type CCD linear sensor designed for color image scanner use.

Features

Number of effective pixels: 2048 × 2pixels.
Pixel size Red/Blue pixel: 14µm × 12µm (14µm pitch) Green pixel: 14µm × 14µm (14µm pitch).
Built-in timing generator, clock-drivers.
Ultra-low lag.
Good linearity.
High sensitivity.
Input Clock Pulse: CMOS 5V drive Absolute Maximum Ratings.
Supply voltage VDD1 VDD2 Pin Configuration (Top View) 22 pin DIP (Cer-DIP) Block Diagram 12 φV1 11 φV2 φROG Driver 9 Driver Driver GND.
