CXG1016N - High-Frequency SPDT Antenna Switch

Sony Corporation

📥 Download Datasheet

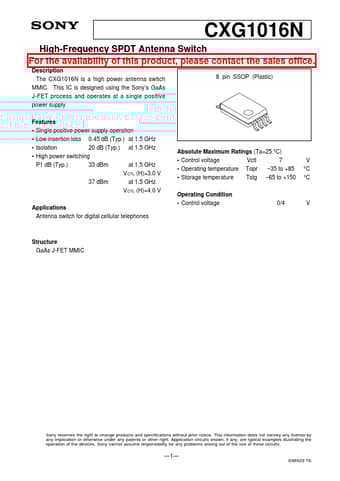

CXG1016N Datasheet Preview — Preview of CXG1016N PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CXG1016N
Manufacturer	Sony Corporation
File Size	80.50 KB
Description	High-Frequency SPDT Antenna Switch
Datasheet	CXG1016N_SonyCorporation.pdf

CXG1016N Product details

Description

The CXG1016N is a high power antenna switch MMIC.

Features

Single positive power supply operation.
Low insertion loss 0.45 dB (Typ. ) at 1.5 GHz.
Isolation 20 dB (Typ. ) at 1.5 GHz.
High power switching P1 dB (Typ. ) 33 dBm at 1.5 GHz VCTL (H)=3.0 V 37 dBm at 1.5 GHz VCTL (H)=4.0 V.
