CXG1012N - High-Frequency SPDT Antenna Switch

Sony Corporation

📥 Download Datasheet

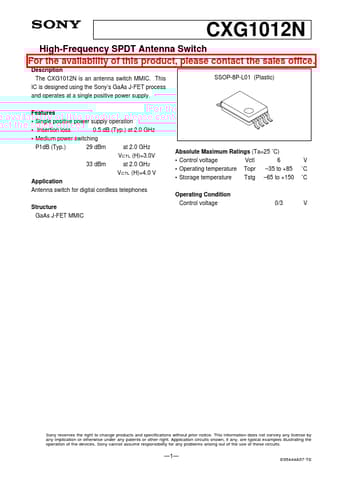

CXG1012N Datasheet Preview — Preview of CXG1012N PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CXG1012N
Manufacturer	Sony Corporation
File Size	76.43 KB
Description	High-Frequency SPDT Antenna Switch
Datasheet	CXG1012N_SonyCorporation.pdf

CXG1012N Product details

Description

The CXG1012N is an antenna switch MMIC.

Features

Single positive power supply operation.
Insertion loss 0.5 dB (Typ. ) at 2.0 GHz.
Medium power switching P1dB (Typ. ) 29 dBm at 2.0 GHz VCTL (H)=3.0V 33 dBm at 2.0 GHZ VCTL (H)=4.0 V.
