CXG1010N - Power Amplifier for PHS

Sony Corporation

📥 Download Datasheet

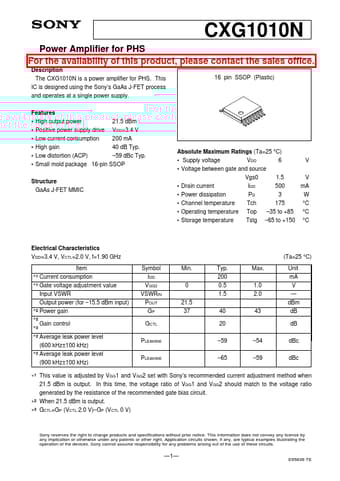

CXG1010N Datasheet Preview — Preview of CXG1010N PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CXG1010N
Manufacturer	Sony Corporation
File Size	218.37 KB
Description	Power Amplifier for PHS
Datasheet	CXG1010N_SonyCorporation.pdf

CXG1010N Product details

Description

The CXG1010N is a power amplifier for PHS.

Features

High output power 21.5 dBm.
Positive power supply drive VDD=3.4 V.
Low current consumption 200 mA.
High gain 40 dB Typ.
Low distortion (ACP).
59 dBc Typ.
Small mold package 16-pin SSOP Structure GaAs J-FET MMIC 16 pin SSOP (Plastic) Absolute Maximum Ratings (Ta=25 °C) 6.
Supply voltage VDD.
Voltage between gate and source Vgs0 1.5.
Drain current IDD 500.
Power dissipation PD 3.
Channel.
