CXG1115ER - Dual-band Low Noise Amplifier/Mixer

Name: CXG1115ER
SKU: CXG1115ER-1161522

Sony

📥 Download Datasheet

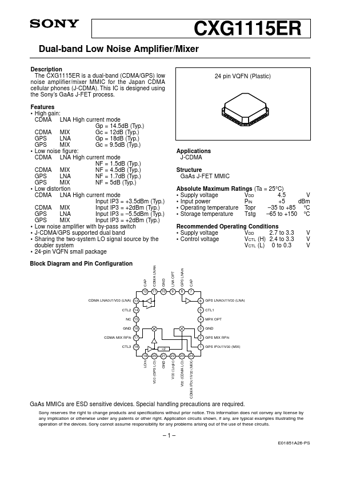

CXG1115ER Datasheet Preview — Preview of CXG1115ER PDF

Datasheet Details

Part number	CXG1115ER
Manufacturer	Sony
File Size	182.21 KB
Description	Dual-band Low Noise Amplifier/Mixer
Datasheet	CXG1115ER-Sony.pdf

CXG1115ER Product details

Description

The CXG1115ER is a dual-band (CDMA/GPS) low noise amplifier/mixer MMIC for the Japan CDMA cellular phones (J-CDMA).This IC is designed using the Sony’s GaAs J-FET process.

Features

High gain: CDMA LNA High current mode Gp = 14.5dB (Typ. ) CDMA MIX Gc = 12dB (Typ. ) GPS LNA Gp = 18dB (Typ. ) GPS MIX Gc = 9.5dB (Typ. ).
Low noise figure: CDMA LNA High current mode NF = 1.5dB (Typ. ) CDMA MIX NF = 4.5dB (Typ. ) GPS LNA NF = 1.7dB (Typ. ) GPS MIX NF = 5dB (Typ. ).
Low distortion CDMA LNA High current mode Input IP3 = +3.5dBm (Typ. ) CDMA MIX Input IP3 = +2dBm (Typ. ) GPS LNA Input IP3 =.
5.5dBm (Typ. ) GPS MIX Input IP3 = +2d.
