CXG1121TN - SP4T GSM/GPRS Dual-Band Antenna Switch + Logic

Description

The CXG1121TN is one of a range of low insertion loss, high power MMIC antenna switches for GSM/ GPRS dual-band application.

The low insertion loss on transmit means increased talk time as the Tx power amplifier can be operated at a lower output level.

Features

  • Insertion loss (Tx) 0.5dB typical at 34dBm (GSM900).
  • 3 CMOS compatible control lines.
  • Low second harmonic,.
  • 40dBm typical, at 34dBm (GSM900).
  • Small package size: 16-pin TSSOP (3.9mm × 4.1mm × 1.2mm).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CXG1100TN High Power DPDT Switch Sony
CXG1115ER Dual-band Low Noise Amplifier/Mixer Sony
CXG1172UR JPHEMT High Power DPDT Switch Sony
CXG1173UR High Power SPDT Switch Sony
CXG1175UR High Power DPDT Switch SONY

Other Datasheets by Sony Semiconductor Solutions

Part Number Description
CXG1122EN SP5T GSM Triple-Band/GPRS Antenna Switch
CXG1125ER High Power 6 4 Antenna Switch MMIC with Integrated Control Logic for PDC Full Packet
CXG1127ER High Power 5 4 Antenna Switch MMIC with Integrated Control Logic for PDC Dual Phone
CXG1101TN SP3T Antenna Switch for TDMA800/1900/AMPS800 Triple Mode Application
CXG1108K Power Amplifier Module for JCDMA

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

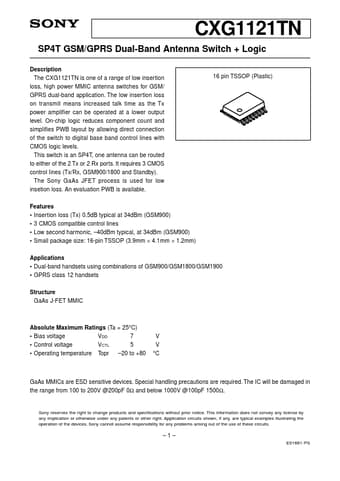

CXG1121TN SP4T GSM/GPRS Dual-Band Antenna Switch + Logic Description The CXG1121TN is one of a range of low insertion loss, high power MMIC antenna switches for GSM/ GPRS dual-band application. The low insertion loss on transmit means increased talk time as the Tx power amplifier can be operated at a lower output level. On-chip logic reduces component count and simplifies PWB layout by allowing direct connection of the switch to digital base band control lines with CMOS logic levels. This switch is an SP4T, one antenna can be routed to either of the 2 Tx or 2 Rx ports. It requires 3 CMOS control lines (Tx/Rx, GSM900/1800 and Standby). The Sony GaAs JFET process is used for low insetion loss. An evaluation PWB is available. Features • Insertion loss (Tx) 0.
