CXA2598M PDIC for CD-R/RW

Sony Corporation

Description

CXA2598M PDIC for CD-R/RW .
The CXA2598M is a PDIC (photodetector IC) developed as a photodetector for the optical pickup of CD-R/RW.

📥 Download Datasheet

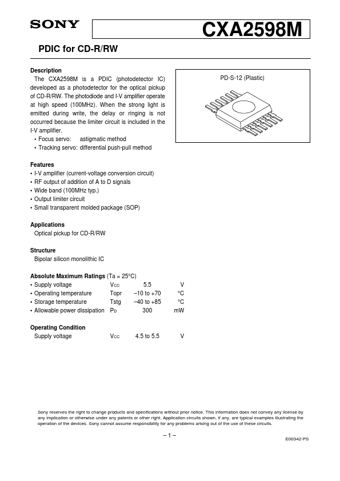

CXA2598M Datasheet Preview — Preview of CXA2598M PDF

Datasheet Specifications

Part number: CXA2598M
Manufacturer: Sony Corporation
File Size: 71.05 KB
Datasheet: CXA2598M_SonyCorporation.pdf
Description: PDIC for CD-R/RW

Features

* I-V amplifier (current-voltage conversion circuit)
* RF output of addition of A to D signals
* Wide band (100MHz typ. )
* Output limiter circuit

Applications

* Optical pickup for CD-R/RW Structure Bipolar silicon monolithic IC Absolute Maximum Ratings (Ta = 25°C)
* Supply voltage VCC 5.5
* Operating temperature Topr
* 10 to +70
* Storage temperature Tstg
* 40 to +85
* Allowable power dissipation PD 300 Operatin
