CXA2500M Dual REC/PB Preamplifier

Sony Corporation

CXA2500M Description

CXA2500M/N Dual REC/PB Preamplifier .
The CXA2500M/N is a dual recording/playback preamplifier system bipolar IC which has been developed for the low voltage operating cassette tape record.

CXA2500M Features

* Low quiescent current (VCC = 2V) PB: ICC = 3.2mA (typ. ) REC: ICC = 5.2mA (typ. )
* Very few external parts
* Built-in Metal/Normal selection switch

CXA2500M Applications

* 3V headphone radio cassette recorders Structure Bipolar silicon monolithic IC Bock Diagram PB OUTPUT (A) MIC INPUT (B) PB EQ SWITCH (B) CXA2500M 24 pin SOP (Plastic) CXA2500N 24 pin SSOP (Plastic) Absolute Maximum Ratings (Ta = 25°C)
* Supply voltage VCC 7
* Operating temperature

📥 Download Datasheet

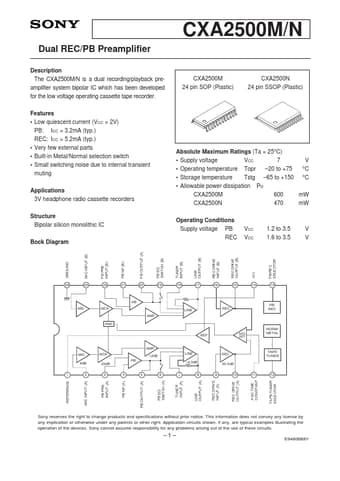

CXA2500M Datasheet Preview — Preview of CXA2500M PDF

Datasheet Details

Part number: CXA2500M
Manufacturer: Sony Corporation
File Size: 220.83 KB
Datasheet: CXA2500M_SonyCorporation.pdf
Description: Dual REC/PB Preamplifier
