CXA2530 LED

CXA2530 Description

CLD-DS54 REV 9C Cree® XLamp® CXA2530 LED PRODUCT FAMILY DATA SHEET PRODUCT .
TheXLamp®CXA2530LEDarrayexpands Cree’s family of high‑flux, multi‑die arrays, offering high performance in an easy‑to‑use platform.

CXA2530 Features

* Available in 4-step, 3‑step and 2-step EasyWhite® bins at 2700 K, 3000 K, 3500 K, 4000 K & 5000 K CCT and 4-step EasyWhite bins at 5700 K & 6500 K CCT
* Available in ANSI white bins at 4000 K, 5000 K, 5700 K & 6500 K CCT
* Available in 70-, 80-, 90- and 93‑minimum CRI op

CXA2530 Applications

* and luminaire designs. Available in 2‑step and 4‑step color consistency, and featuring a 19‑mm optical source, the CXA2530 brings new levels of flux and efficacy to this form factor. The CX Family LED Design Guide provides basic information on the requirements to use the CXA2530 LED successfully in

📥 Download Datasheet

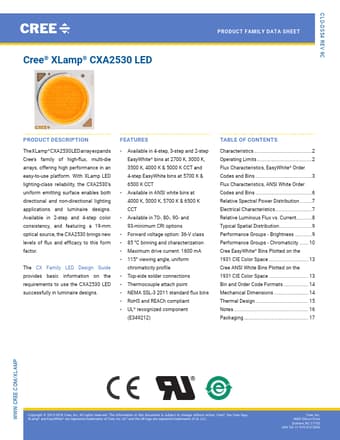

Preview of CXA2530 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CXA2530
Manufacturer
Cree
File Size
2.21 MB
Datasheet
CXA2530_Cree.pdf
Description
LED
