CXA2504N Sample-and-Hold Driver IC for LCD

Sony Corporation

CXA2504N Description

CXA2504N Sample-and-Hold Driver IC for LCD .
The CXA2504N comprises a 6-channel sampleand-hold circuit and driver for liquid crystal display. Built-in sample-and-hold circuit f.

CXA2504N Features

* Built-in sample-and-hold circuit for phase matching
* Sample-and-hold circuit slew rate 280V/µs (Typ. )
* Driver slew rate 190V/µs (Typ. ) (for 300pF load capacitance)
* Sample-and-hold circuit slew rate adjustment function
* Driver slew rate adjustment functi

CXA2504N Applications

* Liquid crystal projectors
* Liquid crystal viewfinders
* Small liquid crystal monitors 40 pin SSOP (Plastic) Absolute Maximum Ratings (Ta = 25°C)
* Supply voltage VCC1 17 VCC2 17 VCC3 7 ∗ 1
* Input pin voltage 1 VIN1 Vcc1 ∗ 2
* Input pin voltage 2 V

📥 Download Datasheet

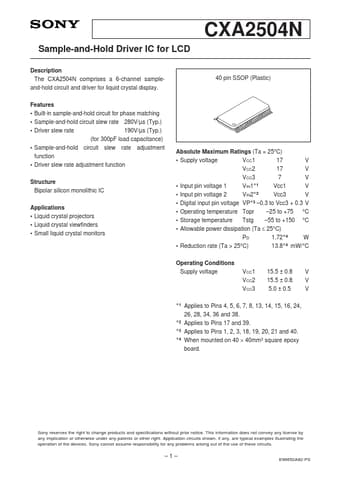

CXA2504N Datasheet Preview — Preview of CXA2504N PDF
