STT60GK16, STT60GK08 Thyristor-Thyristor Modules

STT60GK16 Description

STT60 Thyristor-Thyristor Modules Dimensions in mm (1mm=0.0394") Type VRSM VDSM V 900 1300 1500 1700 1900 VRRM VDRM V 800 1200 1400 1600 1800 STT60GK.

STT60GK16 Features

* International standard package
* Copper base plate
* Planar passivated chips

STT60GK16 Applications

* DC motor control
* Softstart AC motor controller
* Light, heat and temperature control ADVANTAGES
* Space and weight savings
* Simple mounting with two screws
* Improved temperature and power cycling
* Reduced protection circuits STT60 Thyristor-Thyristor Modules Fig

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STT60GK16, STT60GK08. Please refer to the document for exact specifications by model.

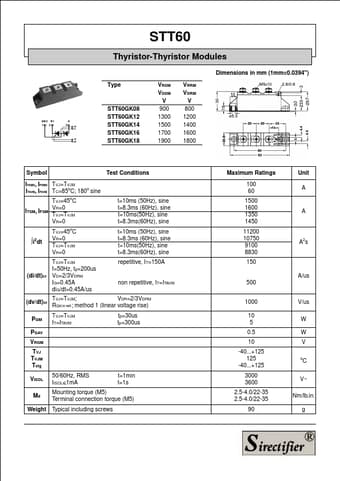

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STT60GK16, STT60GK08
Manufacturer
Sirectifier
File Size
566.89 KB
Datasheet
STT60GK08-Sirectifier.pdf
Description
Thyristor-Thyristor Modules
Note
This datasheet PDF includes multiple part numbers: STT60GK16, STT60GK08.
Please refer to the document for exact specifications by model.
