MAX71071 - Dual-Channel Isolated Metrology ADCs

Product Overview

Silergy

📥 Download Datasheet

MAX71071 Dual-Channel Isolated Metrology ADCs by Silergy - Datasheet Preview — Datasheet preview – MAX71071

Datasheet Details

Part number	MAX71071
Manufacturer	Silergy
File Size	450.97 KB
Description	Dual-Channel Isolated Metrology ADCs
Datasheet	MAX71071 Datasheet

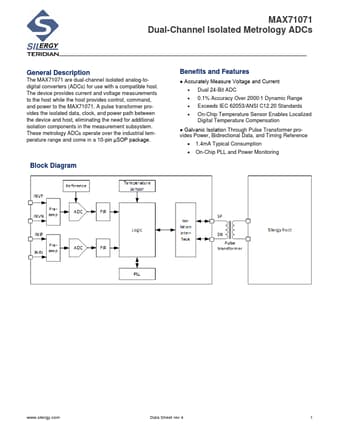

Additional preview pages of the MAX71071 datasheet.

Product details

Description

The MAX71071 are dual-channel isolated analog-todigital converters (ADCs) for use with a compatible host.

Features

Accurately Measure Voltage and Current.
Dual 24-Bit ADC.
0.1% Accuracy Over 2000:1 Dynamic Range.
Exceeds IEC 62053/ANSI C12.20 Standards.
On-Chip Temperature Sensor Enables Localized Digital Temperature Compensation.
Galvanic Isolation Through Pulse Transformer provides Power, Bidirectional Data, and Timing Reference.
1.4mA Typical Consumption.
On-Chip PLL and Power Monitoring www. silergy. com Data Sheet rev 4 1 MAX71071 Absolu.
