MAX71020A - Energy Measurement AFE

Product Overview

Silergy

Datasheet Details

Part number	MAX71020A
Manufacturer	Silergy
File Size	622.53 KB
Description	Energy Measurement AFE
Datasheet	MAX71020A Datasheet

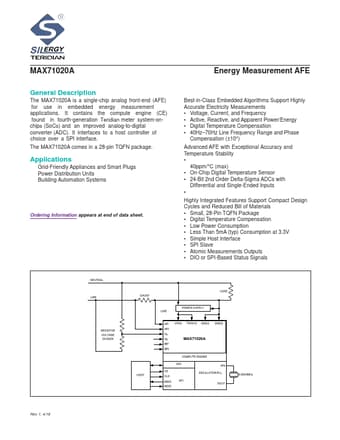

Additional preview pages of the MAX71020A datasheet.

Product details

Description

The MAX71020A is a single-chip analog front-end (AFE) for use in embedded energy measurement applications. Grid-Friendly Appliances and Smart Plugs Power Distribution Units Building Automati

Features

Best-in-Class Embedded Algorithms Support Highly Accurate Electricity Measurements.
Voltage, Current, and Frequency.
Active, Reactive, and Apparent Power/Energy.
Digital Temperature Compensation.
40Hz.
70Hz Line Frequency Range and Phase Compensation (±10°).
Advanced AFE with Exceptional Accuracy and Temperature Stability.
Voltage Reference Temperature Coefficient: 40ppm/°C (max).
On-Chip Digital Temperature.
