MAX71314L - Single-Phase Electricity Meter SoC

Product Overview

Silergy

Datasheet Details

Part number	MAX71314L
Manufacturer	Silergy
File Size	675.59 KB
Description	Single-Phase Electricity Meter SoC
Datasheet	MAX71314L Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX71314L, MAX71313L. Please refer to the document for exact specifications by model.

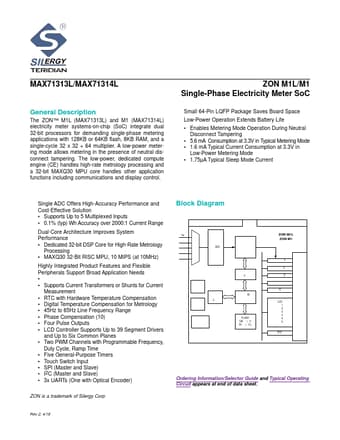

Additional preview pages of the MAX71314L datasheet.

Product details

Description

The ZON™ M1L (MAX71313L) and M1 (MAX71314L) electricity meter systems-on-chip (SoC) integrate dual 32-bit processors for demanding single-phase metering applications with 128KB or 64KB flash, 8KB RAM, and a single-cycle 32 x 32 + 64 multiplier.

Features

Single ADC Offers High-Accuracy Performance and Cost-Effective Solution.
Supports Up to 5 Multiplexed Inputs.
0.1% (typ) Wh Accuracy over 2000:1 Current Range.
Dual-Core Architecture Improves System Performance.
Dedicated 32-bit DSP Core for High-Rate Metrology Processing.
MAXQ30 32-Bit RISC MPU, 10 MIPS (at 10MHz).
Highly Integrated Product Features and Flexible Peripherals Support Broad.
