MAX71314 - Single-Phase Electricity Meter SOC

Product Overview

Maxim Integrated

Datasheet Details

Part number	MAX71314
Manufacturer	Maxim Integrated
File Size	585.43 KB
Description	Single-Phase Electricity Meter SOC
Datasheet	MAX71314 Datasheet

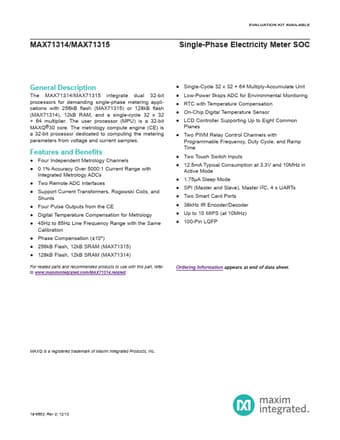

Additional preview pages of the MAX71314 datasheet.

Product details

Description

The MAX71314/MAX71315 integrate dual 32-bit processors for demanding single-phase metering applications with 256kB flash (MAX71315) or 128kB flash (MAX71314), 12kB RAM, and a single-cycle 32 x 32 + 64 multiplier.

Features

Four Independent Metrology Channels.
0.1% Accuracy Over 5000:1 Current Range with Integrated Metrology ADCs.
Two Remote ADC Interfaces.
Support Current Transformers, Rogowski Coils, and Shunts.
Four Pulse Outputs from the CE.
Digital Temperature Compensation for Metrology.
45Hz to 65Hz Line Frequency Range with the Same Calibration.
Phase Compensation (±10°).
256kB Flash, 12kB SRAM (MAX71315).
1.
