MAX71071H - Dual-Channel Isolated Metrology ADCs

Product Overview

Maxim Integrated

📥 Download Datasheet

MAX71071H Dual-Channel Isolated Metrology ADCs by Maxim Integrated - Datasheet Preview — Datasheet preview – MAX71071H

Datasheet Details

Part number	MAX71071H
Manufacturer	Maxim Integrated
File Size	315.84 KB
Description	Dual-Channel Isolated Metrology ADCs
Datasheet	MAX71071H Datasheet
Note	This datasheet PDF includes multiple part numbers: MAX71071H, MAX71071. Please refer to the document for exact specifications by model.

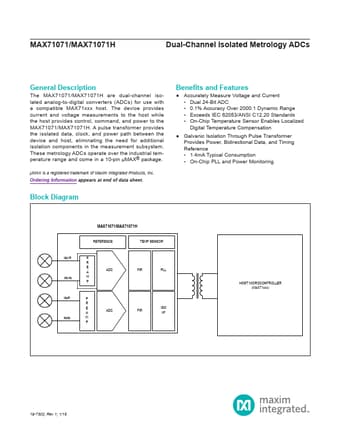

Additional preview pages of the MAX71071H datasheet.

Product details

Description

The MAX71071/MAX71071H are dual-channel isolated analog-to-digital converters (ADCs) for use with a compatible MAX71xxx host.

Features

Accurately Measure Voltage and Current.
Dual 24-Bit ADC.
0.1% Accuracy Over 2000:1 Dynamic Range.
Exceeds IEC 62053/ANSI C12.20 Standards.
On-Chip Temperature Sensor Enables Localized Digital Temperature Compensation.
Galvanic Isolation Through Pulse Transformer Provides Power, Bidirectional Data, and Timing Reference.
1.4mA Typical Consumption.
On-Chip PLL and Power Monitoring Block Diagram MAX71071/MAX71071H.
