SVF10N80F - 800V N-CHANNEL MOSFET

SVF10N80F Description

Silan Microelectronics SVF10N80F/K_Datasheet 10A, 800V N-CHANNEL MOSFET GENERAL .
SVF10N80F/K is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM high-voltage planar.

SVF10N80F Features

* 10A,800V,RDS(on)(typ. )=0.92@VGS=10V
* Low gate charge
* Low Crss
* Fast switching
* Improved dv/dt capability ORDERING INFORMATION Part No. SVF10N80F SVF10N80K Package TO-220F-3L TO-262-3L Marking SVF10N80F SVF10N80K 2 1 3 1.Gate 2.Drain 3.Source 12 3 TO-220F-3L 12 3 TO-

📥 Download Datasheet

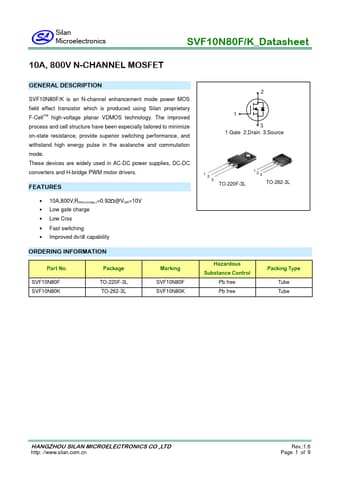

Preview of SVF10N80F PDF
datasheet Preview Page 2 datasheet Preview Page 3
