SVF10N60CFJ 600V N-CHANNEL MOSFET

SVF10N60CFJ Description

SVF10N60CFJ_Datasheet 10A, 600V N-CHANNEL MOSFET GENERAL .
SVF10N60CFJ is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary F-CellTM structure VDMOS tech.

SVF10N60CFJ Features

* 10A, 600V, RDS(on)(typ. )=0.75@VGS=10V
* Low gate charge
* Low Crss
* Fast switching
* Improved dv/dt capability NOMENCLATURE 2 1 3 1.Gate 2.Drain 3.Source 1 23 TO-220FJ-3L ORDERING INFORMATION Part No. SVF10N60CFJ Package TO-220FJ-3L Marking 10N60CFJ Hazardous Substance

📥 Download Datasheet

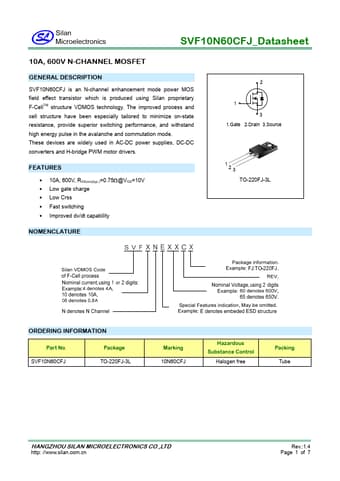

Preview of SVF10N60CFJ PDF
datasheet Preview Page 2 datasheet Preview Page 3
