SBD20C45T 45V SCHOTTKY RECTIFIER

SBD20C45T Description

SBD20C45T/F_Datasheet 20A, 45V SCHOTTKY RECTIFIER .
SBD20C45T/F is schottky rectifier fabricated in silicon epitaxial planar technology, Guard ring construction for over voltage protection and enhanced.

SBD20C45T Features

* ∗ Guard ring for Stress Protection ∗ High Surge Capacity ∗ Low power loss , high efficiency ∗ Low Forward Voltage Drop ∗ 125°C Operating Junction Temperature ORDERING INFORMATION Part No. SBD20C45T SBD20C45F Package TO-220-3L TO-220F-3L Marking SBD20C45T SBD20C45F Material Pb free Pb free ABSO

📥 Download Datasheet

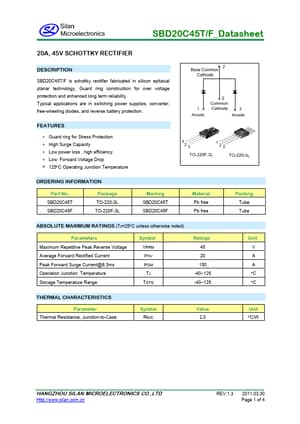

Preview of SBD20C45T PDF
datasheet Preview Page 2 datasheet Preview Page 3
