SBD20C40F, SBD20C40T - 40V SCHOTTKY RECTIFIER

SBD20C40F Description

SBD20C40T/F_Datasheet 20A, 40V SCHOTTKY RECTIFIER .
SBD20C45T/F is schottky rectifier fabricated in silicon epitaxial planar technology, Guard ring construction for over voltage protection and enhanced.

SBD20C40F Features

* ∗ Guard ring for Stress Protection ∗ High Surge Capacity ∗ Low power loss , high efficiency ∗ Low Forward Voltage Drop
* 125°C Operating Junction Temperature ORDERING SPECIFICATIONS Part No. SBD20C40T SBD20C40F Package TO-220-3L TO-220F-3L Marking SBD20C40T SBD20C40F Material Pb free Pb fre

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SBD20C40F, SBD20C40T. Please refer to the document for exact specifications by model.

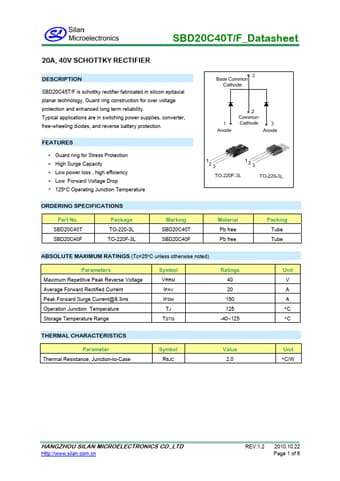

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SBD20C40F, SBD20C40T
Manufacturer
Silan Microelectronics
File Size
248.67 KB
Datasheet
SBD20C40T-SilanMicroelectronics.pdf
Description
40V SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SBD20C40F, SBD20C40T.
Please refer to the document for exact specifications by model.
